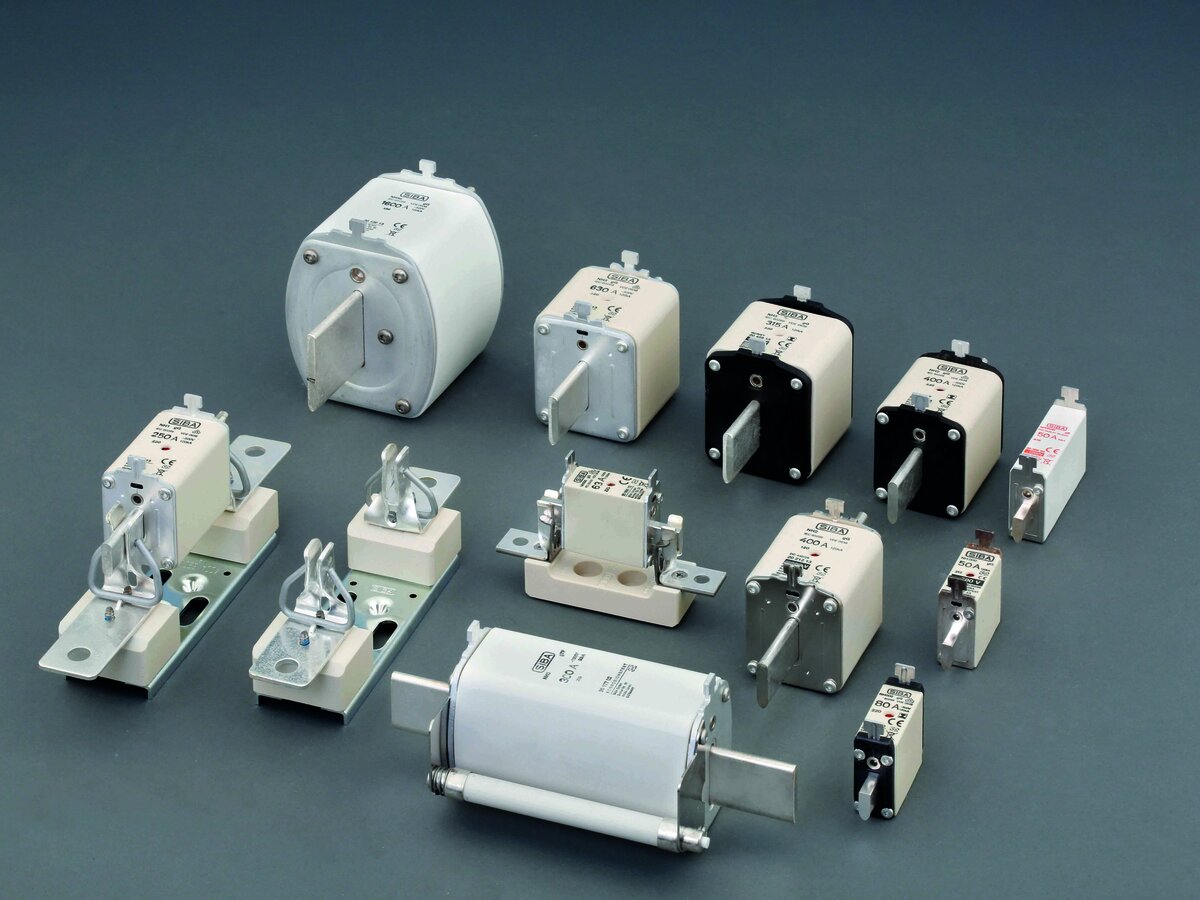

SIBA low-voltage fuse-links – protection for the grid, systems and machinery
SIBA low-voltage fuse-links (NH fuses) are the proven solution for protecting electrical installations in industry, power supply and infrastructure. They provide reliable protection against overload and short circuit, thereby safeguarding critical components such as transformers, motor circuits, cable systems and distribution boards.
Our low-voltage fuse-links are available in a wide range of sizes, utilization categories and rated voltages – from 400V to 1500V. They are used wherever cables and installations in low-voltage networks have to be protected reliably and cost-effectively.
- High breaking capacity of up to 120kA
- Rapid current limiting already in the first half-cycle
- Low switching voltage for safe disconnection
- Minimal power loss thanks to optimized design
- Corrosion-resistant materials for long service life
- Combined indicator for reliable status display – front and center indicators combined
- Sturdy and durable: Mechanically robust construction with low maintenance
- Modular and compact: Suitable for busbar installation and switchgear.
- Recyclable: Copper and silver are recycled – contributing to climate protection
Their simple, robust design and high reliability make low-voltage fuse-links an indispensable fixture in circuit protection.
They have a modular design, are available in all standard sizes (NH000 to NH 4a) and are standardized for numerous utilization categories. This makes them suitable for a wide range of applications, from power distribution to the protection of sensitive electronic equipment.
Our low-voltage fuse-links comply with the most important international standards:
- IEC 60269-1/-2
- VDE 0636 Parts 1, 2 and 21
Selectivity is a key principle in overcurrent protection.
It ensures that, in the event of a fault, only the fuse-link closest to the fault location trips while all other protective devices remain in operation. This improves the security of supply and significantly reduces the risk of consequential damage.
Selectivity can also be achieved in combination with power switches.
However, this requires precise calibration of the time-current characteristics. For applications such as transformer protection, the VDE 0670 Part 402 standard defines the selectivity between high-voltage and low-voltage fuse-links.
Find products meeting these requirements in our range.
SIBA low-voltage fuse-links are available in the following utilization categories:
- gG – Full-range protection for general applications
- gTr – Protection of transformers
- aM – Partial-range protection for motor circuits
- gB – Specialized solutions for the mining industry
