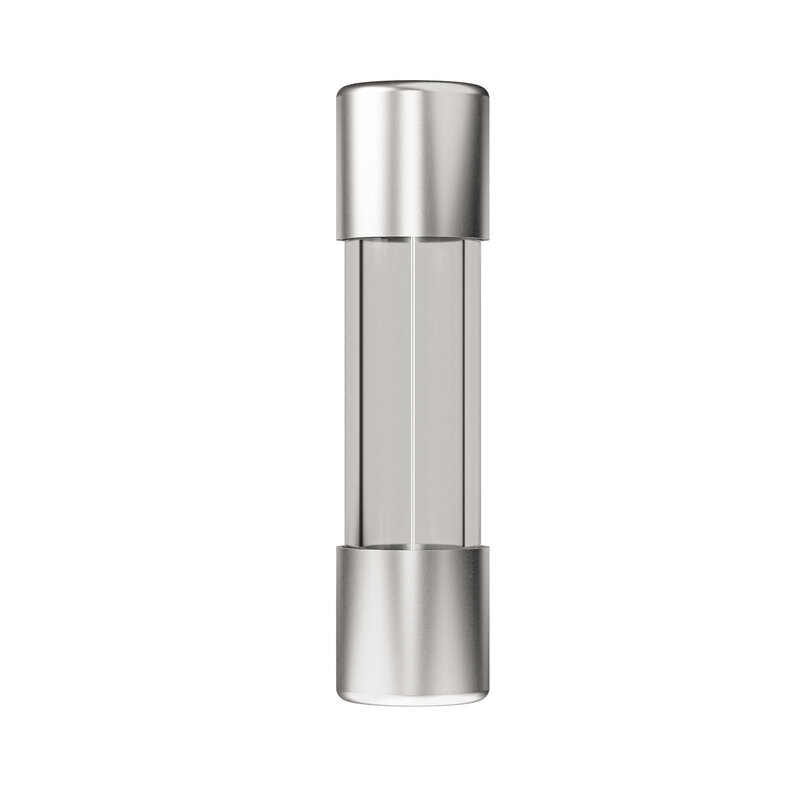

179020.0,032AK  Fuse-Link

GZAK-Fuse-Link | 5x20 mm | F | 32mA |
AC 250V, DC 125V | axial leaded

  • IEC 60127-2/1
  • UL 248-14
Icon VDE
Icon SEMKO
Icon cRUus
Icon CE
179020.0,032AK

Download PDF Contact us

General product data

Item number 179020.0,032AK
Type Fuse-Link
Product group Miniature Fuse-Link
Product subgroup Cylindrical with Push on Caps
Rated current 32mA
Rated voltage AC 250 V / DC 125 V
Rated breaking capacity 35A AC 250V / 35A DC 125V
Characteristic F
Dimensions 5x20
Indicator / Striker Pin
Contact Push on caps
Standard IEC IEC 60127-2/1
Standard UL UL 248-14
Approvals Icon VDEIcon SEMKOIcon cRUusIcon CE

Downloads

Web PDF Web PDF

Request documents

Product family

179020

179020   Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity PDF
5x200.01A - 10AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V

148 Article(s)

Item number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
179020.3,15AK 5x203.15A250 VF35A AC 250V/DC125V Details
179020.3,15FC 5x203.15A250 VF35A AC 250V/DC125V Details
179020.3,15IP 5x203.15A250 VF35A AC 250V/DC125V Details
179020.3,5 5x203.5A250 VF35A AC 250V/DC125V Details
179020.4 5x204A250 VF40A AC 250V/DC125V Details
179020.4IP 5x204A250 VF40A AC 250V/DC125V Details
179020.5 5x205A250 VF50A AC 250V/DC125V Details
179020.5IP 5x205A250 VF50A AC 250V/DC125V Details
179020.6,3 5x206.3A250 VF63A AC 250V/DC125V Details
179020.6,3FC 5x206.3A250 VF63A AC 250V/DC125V Details
179020.6,3IP 5x206.3A250 VF63A AC 250V/DC125V Details
179020.7 5x207A250 VF70A AC 250V Details
179020.8 5x208A250 VF80A AC 250V Details
179020.8IP 5x208A250 VF80A AC 250V Details
179020.0,01AK 5x2010mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,01AK-GT 5x2010mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,01IP 5x2010mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,032AK 5x2032mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,032AK-GT 5x2032mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,04AK 5x2040mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,04AK-GT 5x2040mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,05AK 5x2050mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,05AK-GT 5x2050mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,063AK 5x2063mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,063AK-GT 5x2063mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,07AK 5x2070mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,07AK-GT 5x2070mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,08AK 5x2080mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,08AK-GT 5x2080mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,125AK 5x20125mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,125AK-GT 5x20125mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,16AK 5x20160mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,16AK-GT 5x20160mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,1AK-GT 5x20100mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,05 5x2050mA250 VF35A AC 250V/DC125V Details
179020.0,25AK 5x20250mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,05FC 5x2050mA250 VF35A AC 250V/DC125V Details
179020.0,25AK-GT 5x20250mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,05IP 5x2050mA250 VF35A AC 250V/DC125V Details
179020.0,2AK 5x20200mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,063 5x2063mA250 VF35A AC 250V/DC125V Details
179020.0,2AK-GT 5x20200mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,063FC 5x2063mA250 VF35A AC 250V/DC125V Details
179020.0,315AK 5x20315mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,063IP 5x2063mA250 VF35A AC 250V/DC125V Details
179020.0,315AK-GT 5x20315mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,071 5x2071mA250 VF35A AC 250V/DC125V Details
179020.0,35AK 5x20350mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,071IP 5x2071mA250 VF35A AC 250V/DC125V Details
179020.0,35AK-GT 5x20350mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,08 5x2080mA250 VF35A AC 250V/DC125V Details
179020.0,35IP 5x20350mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,08FC 5x2080mA250 VF35A AC 250V/DC125V Details
179020.0,4AK 5x20400mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,08IP 5x2080mA250 VF35A AC 250V/DC125V Details
179020.0,4AK-GT 5x20400mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,1 5x20100mA250 VF35A AC 250V/DC125V Details
179020.0,5AK-GT 5x20500mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,125 5x20125mA250 VF35A AC 250V/DC125V Details
179020.0,63AK 5x20630mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,125FC 5x20125mA250 VF35A AC 250V/DC125V Details
179020.0,63AK-GT 5x20630mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,125IP 5x20125mA250 VF35A AC 250V/DC125V Details
179020.0,7AK 5x20700mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,16 5x20160mA250 VF35A AC 250V/DC125V Details
179020.0,7AK-GT 5x20700mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,16FC 5x20160mA250 VF35A AC 250V/DC125V Details
179020.0,8AK 5x20800mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,16IP 5x20160mA250 VF35A AC 250V/DC125V Details
179020.0,8AK-GT 5x20800mAAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,1AK 5x20100mA250 VF35A AC 250V/DC125V Details
179020.1,25AK 5x201.25AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,1FC 5x20100mA250 VF35A AC 250V/DC125V Details
179020.1,25AK-GT 5x201.25AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,1IP 5x20100mA250 VF35A AC 250V/DC125V Details
179020.1,4AK 5x201.4AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,2 5x20200mA250 VF35A AC 250V/DC125V Details
179020.1,4AK-GT 5x201.4AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,25 5x20250mA250 VF35A AC 250V/DC125V Details
179020.1,4IP 5x201.4AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,25IP 5x20250mA250 VF35A AC 250V/DC125V Details
179020.1,5AK 5x201.5AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,2IP 5x20200mA250 VF35A AC 250V/DC125V Details
179020.1,5AK-GT 5x201.5AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,315 5x20315mA250 VF35A AC 250V/DC125V Details
179020.1,5IP 5x201.5AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,315IP 5x20315mA250 VF35A AC 250V/DC125V Details
179020.1,6AK 5x201.6AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,4 5x20400mA250 VF35A AC 250V/DC125V Details
179020.1,6AK-GT 5x201.6AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,4IP 5x20400mA250 VF35A AC 250V/DC125V Details
179020.1,8AK 5x201.8AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,5 5x20500mA250 VF35A AC 250V/DC125V Details
179020.1,8AK-GT 5x201.8AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,5AK 5x20500mA250 VF35A AC 250V/DC125V Details
179020.1,8IP 5x201.8AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,5FC 5x20500mA250 VF35A AC 250V/DC125V Details
179020.10AK 5x2010A250 VF100A AC 250 V Details
179020.0,5IP 5x20500mA250 VF35A AC 250V/DC125V Details
179020.10AK-GT 5x2010A250 VF100A AC 250 V Details
179020.0,63 5x20630mA250 VF35A AC 250V/DC125V Details
179020.1AK 5x201AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,63IP 5x20630mA250 VF35A AC 250V/DC125V Details
179020.1AK-GT 5x201AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,7 5x20700mA250 VF35A AC 250V/DC125V Details
179020.2,5AK 5x202.5AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,7IP 5x20700mA250 VF35A AC 250V/DC125V Details
179020.2,5AK-GT 5x202.5AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,8 5x20800mA250 VF35A AC 250V/DC125V Details
179020.2AK 5x202AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.0,8IP 5x20800mA250 VF35A AC 250V/DC125V Details
179020.2AK-GT 5x202AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.1 5x201A250 VF35A AC 250V/DC125V Details
179020.3,15AK-GT 5x203.15AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.1,25 5x201.25A250 VF35A AC 250V/DC125V Details
179020.3,5AK 5x203.5AAC 250 V / DC 125 VF40A AC 250V / 40A DC 125V Details
179020.1,25FC 5x201.25A250 VF35A AC 250V/DC125V Details
179020.3,5AK-GT 5x203.5AAC 250 V / DC 125 VF40A AC 250V / 40A DC 125V Details
179020.1,25IP 5x201.25A250 VF35A AC 250V/DC125V Details
179020.3,5IP 5x203.5AAC 250 V / DC 125 VF40A AC 250V / 40A DC 125V Details
179020.1,4 5x201.4A250 VF35A AC 250V/DC125V Details
179020.3AK 5x203AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.1,5 5x201.5A250 VF35A AC 250V/DC125V Details
179020.3AK-GT 5x203AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.1,6 5x201.6A250 VF35A AC 250V/DC125V Details
179020.3IP 5x203AAC 250 V / DC 125 VF35A AC 250V / 35A DC 125V Details
179020.1,6IP 5x201.6A250 VF35A AC 250V/DC125V Details
179020.4AK 5x204AAC 250 V / DC 125 VF40A AC 250V / 40A DC 125V Details
179020.1,8 5x201.8A250 VF35A AC 250V/DC125V Details
179020.4AK-GT 5x204AAC 250 V / DC 125 VF40A AC 250V / 40A DC 125V Details
179020.10 5x2010A250 VF100A AC 250V Details
179020.5AK 5x205AAC 250 V / DC 125 VF50A AC 250V / 50A DC 125V Details
179020.10IP 5x2010A250 VF100A AC 250V Details
179020.5AK-GT 5x205AAC 250 V / DC 125 VF50A AC 250V / 50A DC 125V Details
179020.1IP 5x201A250 VF35A AC 250V/DC125V Details
179020.6,3AK 5x206.3AAC 250 V / DC 125 VF63A AC 250V / 63A DC 125V Details
179020.2 5x202A250 VF35A AC 250V/DC125V Details
179020.6,3AK-GT 5x206.3AAC 250 V / DC 125 VF63A AC 250V / 63A DC 125V Details
179020.2,5 5x202.5A250 VF35A AC 250V/DC125V Details
179020.7AK 5x207A250 VF35A AC 250V / 35A DC 125V Details
179020.2,5IP 5x202.5A250 VF35A AC 250V/DC125V Details
179020.7AK-GT 5x207A250 VF35A AC 250V / 35A DC 125V Details
179020.2IP 5x202A250 VF35A AC 250V/DC125V Details
179020.7IP 5x207A250 VF35A AC 250V / 35A DC 125V Details
179020.3 5x203A250 VF35A AC 250V/DC125V Details
179020.8AK 5x208A250 VF80A AC 250V / 80A DC 125V Details
179020.3,15 5x203.15A250 VF35A AC 250V/DC125V Details
179020.8AK-GT 5x208A250 VF80A AC 250V / 80A DC 125V Details
