Fuse Detector

2055820 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
NH000		16A - 400A	500 V	aR	200kA AC 700V	Download PDF

18 Article(s)

Item number	Size	Rated current	Rated voltage	Characteristic	Rated breaking capacity
2055820.100	NH000	100A	690 V	aR	200kA AC 700V	Details to product 2055820.100
2055820.110	NH000	110A	690 V	aR	200kA AC 700V	Details to product 2055820.110
2055820.125	NH000	125A	690 V	aR	200kA AC 700V	Details to product 2055820.125
2055820.16	NH000	16A	690 V	aR	200kA AC 700V	Details to product 2055820.16
2055820.160	NH000	160A	690 V	aR	200kA AC 700V	Details to product 2055820.160
2055820.180	NH000	180A	690 V	aR	200kA AC 700V	Details to product 2055820.180
2055820.20	NH000	20A	690 V	aR	200kA AC 700V	Details to product 2055820.20
2055820.200	NH000	200A	690 V	aR	200kA AC 700V	Details to product 2055820.200
2055820.25	NH000	25A	690 V	aR	200kA AC 700V	Details to product 2055820.25
2055820.250	NH000	250A	690 V	aR	200kA AC 700V	Details to product 2055820.250
2055820.315	NH000	315A	690 V	aR	200kA AC 700V	Details to product 2055820.315
2055820.32	NH000	32A	690 V	aR	200kA AC 700V	Details to product 2055820.32
2055820.35	NH000	35A	690 V	aR	200kA AC 700V	Details to product 2055820.35
2055820.350	NH000	350A	500 V	aR		Details to product 2055820.350
2055820.40	NH000	40A	690 V	aR	200kA AC 700V	Details to product 2055820.40
2055820.50	NH000	50A	690 V	aR	200kA AC 700V	Details to product 2055820.50
2055820.63	NH000	63A	690 V	aR	200kA AC 700V	Details to product 2055820.63
2055820.80	NH000	80A	690 V	aR	200kA AC 700V	Details to product 2055820.80

Contact us Download PDF

2055834 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
NH000		16A - 80A	690 V	gS(gRL)	200kA AC 700V	Download PDF

7 Article(s)

Item number	Size	Rated current	Rated voltage	Characteristic	Rated breaking capacity
2055834.20	NH000	20A	690 V	gS(gRL)	200kA AC 700V	Details to product 2055834.20
2055834.32	NH000	32A	690 V	gS(gRL)	200kA AC 700V	Details to product 2055834.32
2055834.40	NH000	40A	690 V	gS(gRL)	200kA AC 700V	Details to product 2055834.40
2055834.50	NH000	50A	690 V	gS(gRL)	200kA AC 700V	Details to product 2055834.50
2055834.63	NH000	63A	690 V	gS(gRL)	200kA AC 700V	Details to product 2055834.63
2055834.80	NH000	80A	690 V	gS(gRL)	200kA AC 700V	Details to product 2055834.80
2055834.16	NH000	16A	690 V	gS(gRL)	200kA AC 700V	Details to product 2055834.16

Contact us Download PDF

2055920 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
NH000		16A - 400A	500 V	aR	200kA AC 500V	Download PDF

24 Article(s)

Item number	Size	Rated current	Rated voltage	Characteristic	Rated breaking capacity
2055920.250	NH000	250A	690 V	aR	200kA AC 700V	Details to product 2055920.250
2055920.315	NH000	315A	690 V	aR	200kA AC 700V	Details to product 2055920.315
2055920.32	NH000	32A	690 V	aR	200kA AC 700V	Details to product 2055920.32
2055920.35	NH000	35A	690 V	aR	200kA AC 700V	Details to product 2055920.35
2055920.350	NH000	350A	690 V	aR	200kA AC 700V	Details to product 2055920.350
2055920.40	NH000	40A	690 V	aR	200kA AC 700V	Details to product 2055920.40
2055920.400	NH000	400A	500 V	aR	200kA AC 500V	Details to product 2055920.400
2055920.50	NH000	50A	690 V	aR	200kA AC 700V	Details to product 2055920.50
2055920.63	NH000	63A	690 V	aR	200kA AC 700V	Details to product 2055920.63
2055920.75	NH000	75A	690 V	aR	200kA AC 700V	Details to product 2055920.75
2055920.80	NH000	80A	690 V	aR	200kA AC 700V	Details to product 2055920.80
2055920.85	NH000	85A	690 V	aR	200kA AC 700V	Details to product 2055920.85
2055920.90	NH000	90A	690 V	aR	200kA AC 700V	Details to product 2055920.90
2055920.100	NH000	100A	690 V	aR	200kA AC 700V	Details to product 2055920.100
2055920.110	NH000	110A	690 V	aR	200kA AC 700V	Details to product 2055920.110
2055920.125	NH000	125A	690 V	aR	200kA AC 700V	Details to product 2055920.125
2055920.140	NH000	140A	690 V	aR	200kA AC 700V	Details to product 2055920.140
2055920.150	NH000	150A	690 V	aR	200kA AC 700V	Details to product 2055920.150
2055920.16	NH000	16A	690 V	aR	200kA AC 700V	Details to product 2055920.16
2055920.160	NH000	160A	690 V	aR	200kA AC 700V	Details to product 2055920.160
2055920.180	NH000	180A	690 V	aR	200kA AC 700V	Details to product 2055920.180
2055920.200	NH000	200A	690 V	aR	200kA AC 700V	Details to product 2055920.200
2055920.225	NH000	225A	690 V	aR	200kA AC 700V	Details to product 2055920.225
2055920.25	NH000	25A	690 V	aR	200kA AC 700V	Details to product 2055920.25

Contact us Download PDF

2055921 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
NH000		160A	690 V	aR	200kA AC 700V	Download PDF

1 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
2055921.160	NH000		160A	690 V	aR	200kA AC 700V	Details to product 2055921.160

Contact us Download PDF

2055922 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
NH000		40A - 400A	500 V	aR	200kA AC 700V	Download PDF

10 Article(s)

Item number	Size	Rated current	Rated voltage	Characteristic	Rated breaking capacity
2055922.100	NH000	100A	690 V	aR	200kA AC 700V	Details to product 2055922.100
2055922.110	NH000	110A	690 V	aR	200kA AC 700V	Details to product 2055922.110
2055922.125	NH000	125A	690 V	aR	200kA AC 700V	Details to product 2055922.125
2055922.150	NH000	150A	690 V	aR	200kA AC 700V	Details to product 2055922.150
2055922.160	NH000	160A	690 V	aR	200kA AC 700V	Details to product 2055922.160
2055922.250	NH000	250A	690 V	aR	200kA AC 700V	Details to product 2055922.250
2055922.315	NH000	315A	690 V	aR	200kA AC 700V	Details to product 2055922.315
2055922.40	NH000	40A	690 V	aR	200kA AC 700V	Details to product 2055922.40
2055922.400	NH000	400A	500 V	aR	200kA AC 700V	Details to product 2055922.400
2055922.75	NH000	75A	690 V	aR	200kA AC 700V	Details to product 2055922.75

Contact us Download PDF

2056020 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
NH00		20A - 315A	900 V	aR	100kA AC 900V	Download PDF

14 Article(s)

Item number	Size	Rated current	Rated voltage	Characteristic	Rated breaking capacity
2056020.100	NH00	100A	1000 V	aR	100kA AC 1000V	Details to product 2056020.100
2056020.125	NH00	125A	1000 V	aR	100kA AC 1000V	Details to product 2056020.125
2056020.160	NH00	160A	1000 V	aR	100kA AC 1000V	Details to product 2056020.160
2056020.20	NH00	20A	1000 V	aR	100kA AC 1000V 10kA DC 850V	Details to product 2056020.20
2056020.200	NH00	200A	1000 V	aR	100kA AC 1000V	Details to product 2056020.200
2056020.224	NH00	224A	1000 V	aR	100kA AC 1000V	Details to product 2056020.224
2056020.250	NH00	250A	1000 V	aR	100kA AC 900V	Details to product 2056020.250
2056020.280	NH00	280A	900 V	aR	100kA AC 900V	Details to product 2056020.280
2056020.315	NH00	315A	900 V	aR	100kA AC 900V	Details to product 2056020.315
2056020.32	NH00	32A	1000 V	aR	100kA AC 1000V 10kA DC 850V	Details to product 2056020.32
2056020.40	NH00	40A	1000 V	aR	100kA AC 1000V 10kA DC 850V	Details to product 2056020.40
2056020.50	NH00	50A	1000 V	aR	100kA AC 1000V 10kA DC 850V	Details to product 2056020.50
2056020.63	NH00	63A	1000 V	aR	100kA AC 1000V 10kA DC 850V	Details to product 2056020.63
2056020.80	NH00	80A	1000 V	aR	100kA AC 1000V 10kA DC 850V	Details to product 2056020.80

Contact us Download PDF

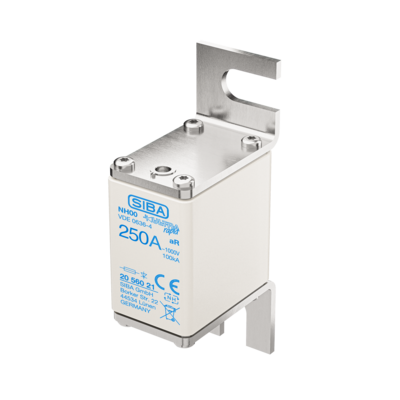

2056021 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
NH00		32A - 315A	1000 V	aR	100kA AC 1000V	Download PDF

3 Article(s)

Item number	Size	Rated current	Rated voltage	Characteristic	Rated breaking capacity
2056021.200	NH00	200A	1000 V	aR	100kA AC 1000V	Details to product 2056021.200
2056021.40	NH00	40A	1000 V	aR	100kA AC 1000V 10kA DC 850V	Details to product 2056021.40
2056021.50	NH00	50A	1000 V	aR	100kA AC 1000V 10kA DC 850V	Details to product 2056021.50

Contact us Download PDF

2056120 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
NH000		80A - 400A	500 V	aR	120kA AC 500V	Download PDF

12 Article(s)

Item number	Size	Rated current	Rated voltage	Characteristic	Rated breaking capacity
2056120.100	NH000	100A	690 V	aR	120kA AC 690V	Details to product 2056120.100
2056120.125	NH000	125A	690 V	aR	120kA AC 690V	Details to product 2056120.125
2056120.150	NH000	150A	690 V	aR	120kA AC 690V	Details to product 2056120.150
2056120.160	NH000	160A	690 V	aR	120kA AC 690V	Details to product 2056120.160
2056120.200	NH000	200A	690 V	aR	120kA AC 690V	Details to product 2056120.200
2056120.225	NH000	225A	690 V	aR	120kA AC 690V	Details to product 2056120.225
2056120.250	NH000	250A	690 V	aR	120kA AC 690V	Details to product 2056120.250
2056120.280	NH000	280A	690 V	aR	120kA AC 690V	Details to product 2056120.280
2056120.315	NH000	315A	690 V	aR	120kA AC 690V	Details to product 2056120.315
2056120.350	NH000	350A	500 V	aR	120kA AC 500V	Details to product 2056120.350
2056120.400	NH000	400A	500 V	aR	120kA AC 500V	Details to product 2056120.400
2056120.80	NH000	80A	690 V	aR	120kA AC 690V	Details to product 2056120.80

Contact us Download PDF

7012540 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	6.3x32	0.1A - 25A	500 V	FF	50kA AC 500V	Download PDF

54 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
7012540.0,1	6.3x32	100mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,1
7012540.0,125	6.3x32	125mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,125
7012540.0,16	6.3x32	160mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,16
7012540.0,1AK	6.3x32	100mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,1AK
7012540.0,1IP	6.3x32	100mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,1IP
7012540.0,2	6.3x32	200mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,2
7012540.0,25	6.3x32	250mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,25
7012540.0,25IP	6.3x32	250mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,25IP
7012540.0,315	6.3x32	315mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,315
7012540.0,4	6.3x32	400mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,4
7012540.0,4AK	6.3x32	400mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,4AK
7012540.0,4AK-GT	6.3x32	400mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,4AK-GT
7012540.0,5	6.3x32	500mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,5
7012540.0,5AK	6.3x32	500mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,5AK
7012540.0,5IP	6.3x32	500mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,5IP
7012540.0,63	6.3x32	630mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,63
7012540.0,8	6.3x32	800mA	700 V	FF	50kA AC 700V	Details to product 7012540.0,8
7012540.1	6.3x32	1A	700 V	FF	50kA AC 700V	Details to product 7012540.1
7012540.1,25	6.3x32	1,25A	700 V	FF	50kA AC 700V	Details to product 7012540.1,25
7012540.1,6	6.3x32	1,6A	700 V	FF	50kA AC 700V	Details to product 7012540.1,6
7012540.10	6.3x32	10A	600 V	FF	50kA AC 600V	Details to product 7012540.10
7012540.10AK	6.3x32	10A	600 V	FF	50kA AC 600V	Details to product 7012540.10AK
7012540.10IP	6.3x32	10A	600 V	FF	50kA AC 600V	Details to product 7012540.10IP
7012540.12,5	6.3x32	12,5A	500 V	FF	50kA AC 500V	Details to product 7012540.12,5
7012540.12,5AK	6.3x32	12,5A	500 V	FF	50kA AC 500V	Details to product 7012540.12,5AK
7012540.12,5IP	6.3x32	12,5A	500 V	FF	50kA AC 500V	Details to product 7012540.12,5IP
7012540.16	6.3x32	16A	500 V	FF	50kA AC 500V	Details to product 7012540.16
7012540.16AK	6.3x32	16A	500 V	FF	50kA AC 500V	Details to product 7012540.16AK
7012540.16IP	6.3x32	16A	500 V	FF	50kA AC 500V	Details to product 7012540.16IP
7012540.1IP	6.3x32	1A	700 V	FF	50kA AC 700V	Details to product 7012540.1IP
7012540.2	6.3x32	2A	700 V	FF	50kA AC 700V	Details to product 7012540.2
7012540.2,5	6.3x32	2,5A	600 V	FF	50kA AC 600V	Details to product 7012540.2,5
7012540.2,5IP	6.3x32	2,5A	600 V	FF	50kA AC 600V	Details to product 7012540.2,5IP
7012540.20	6.3x32	20A	500 V	FF	50kA AC 500V	Details to product 7012540.20
7012540.20AK	6.3x32	20A	500 V	FF	50kA AC 500V	Details to product 7012540.20AK
7012540.20IP	6.3x32	20A	500 V	FF	50kA AC 500V	Details to product 7012540.20IP
7012540.25	6.3x32	25A	500 V	FF	50kA AC 500V	Details to product 7012540.25
7012540.25AK	6.3x32	25A	500 V	FF	50kA AC 500V	Details to product 7012540.25AK
7012540.25IP	6.3x32	25A	500 V	FF	50kA AC 500V	Details to product 7012540.25IP
7012540.2AK	6.3x32	2A	700 V	FF	50kA AC 700V	Details to product 7012540.2AK
7012540.2IP	6.3x32	2A	700 V	FF	50kA AC 700V	Details to product 7012540.2IP
7012540.3,15	6.3x32	3,15A	600 V	FF	50kA AC 600V	Details to product 7012540.3,15
7012540.3,15IP	6.3x32	3,15A	600 V	FF	50kA AC 600V	Details to product 7012540.3,15IP
7012540.4	6.3x32	4A	600 V	FF	50kA AC 600V	Details to product 7012540.4
7012540.4AK	6.3x32	4A	600 V	FF	50kA AC 600V	Details to product 7012540.4AK
7012540.4IP	6.3x32	4A	600 V	FF	50kA AC 600V	Details to product 7012540.4IP
7012540.5	6.3x32	5A	600 V	FF	50kA AC 600V	Details to product 7012540.5
7012540.5AK	6.3x32	5A	600 V	FF	50kA AC 600V	Details to product 7012540.5AK
7012540.5IP	6.3x32	5A	600 V	FF	50kA AC 600V	Details to product 7012540.5IP
7012540.6,3	6.3x32	6,3A	600 V	FF	50kA AC 600V	Details to product 7012540.6,3
7012540.6,3IP	6.3x32	6,3A	600 V	FF	50kA AC 600V	Details to product 7012540.6,3IP
7012540.8	6.3x32	8A	600 V	FF	50kA AC 600V	Details to product 7012540.8
7012540.8AK	6.3x32	8A	600 V	FF	50kA AC 600V	Details to product 7012540.8AK
7012540.8IP	6.3x32	8A	600 V	FF	50kA AC 600V	Details to product 7012540.8IP

Contact us Download PDF

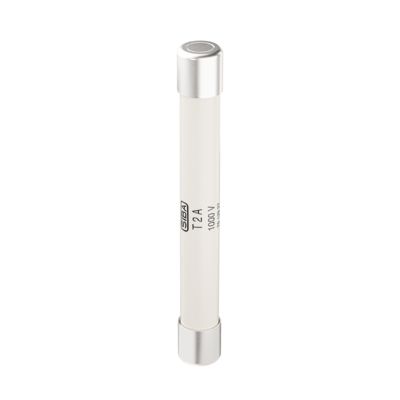

7012927 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
	11x79	2A - 16A	1000 V	T	15kA AC 1000V

5 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
7012927.10	11x79	10A	1000 V	T	15kA AC 1000V	Details to product 7012927.10
7012927.16	11x79	16A	1000 V	T	15kA AC 1000V	Details to product 7012927.16
7012927.2	11x79	2A	1000 V	T	15kA AC 1000V	Details to product 7012927.2
7012927.4	11x79	4A	1000 V	T	15kA AC 1000V	Details to product 7012927.4
7012927.6	11x79	6A	1000 V	T	15kA AC 1000V	Details to product 7012927.6

Contact us

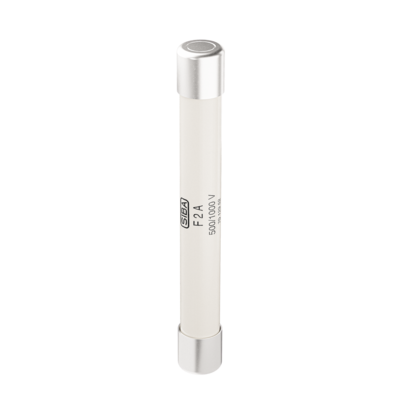

7012952 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
	11x79	1A - 10A	1000 V	F	15kA AC 1000V

6 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
7012952.1	11x79	1A	1000 V	F	15kA AC 1000V	Details to product 7012952.1
7012952.10	11x79	10A	1000 V	F		Details to product 7012952.10
7012952.2	11x79	2A	1000 V	F	15kA AC 1000V	Details to product 7012952.2
7012952.4	11x79	4A	1000 V	F	15kA AC 1000V	Details to product 7012952.4
7012952.6	11x79	6A	1000 V	F	15kA AC 1000V	Details to product 7012952.6
7012952.8	11x79	8A	1000 V	F		Details to product 7012952.8

Contact us

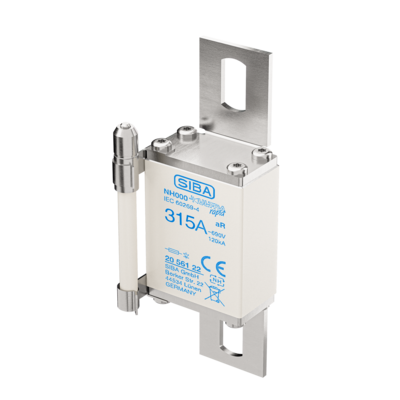

2056122 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
NH000		110A - 400A	500 V	aR	120kA	Download PDF

7 Article(s)

Item number	Size	Rated current	Rated voltage	Characteristic	Rated breaking capacity
2056122.110	NH000	110A	690 V	aR	120kA	Details to product 2056122.110
2056122.150	NH000	150A	690 V	aR	120kA	Details to product 2056122.150
2056122.160	NH000	160A	690 V	aR	120kA	Details to product 2056122.160
2056122.200	NH000	200A	690 V	aR	120kA AC 690V	Details to product 2056122.200
2056122.315	NH000	315A	690 V	aR	120kA	Details to product 2056122.315
2056122.350	NH000	350A	500 V	aR	120kA	Details to product 2056122.350
2056122.400	NH000	400A	500 V	aR	120kA	Details to product 2056122.400

Contact us Download PDF
