Fuse Detector

199070IP Fuse-Holder

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	5x20		250 V			Download PDF

1 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
199070IP		5x20		250 V			Details to product 199070IP

Contact us Download PDF

199080IP Fuse-Holder

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	5x20/6.3x32	6.3A	250 V			Download PDF

1 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
199080IP		5x20/6.3x32	6,3A	250 V			Details to product 199080IP

Contact us Download PDF

2028221 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
NH000		32A - 400A	500 V	aR	200kA AC 500V	Download PDF

11 Article(s)

Item number	Size	Rated current	Rated voltage	Characteristic	Rated breaking capacity
2028221.100	NH000	100A	690 V	aR	200kA AC 700V	Details to product 2028221.100
2028221.125	NH000	125A	690 V	aR	200kA AC 700V	Details to product 2028221.125
2028221.160	NH000	160A	690 V	aR	200kA AC 700V	Details to product 2028221.160
2028221.200	NH000	200A	690 V	aR	200kA AC 700V	Details to product 2028221.200
2028221.250	NH000	250A	690 V	aR	200kA AC 700V	Details to product 2028221.250
2028221.315	NH000	315A	690 V	aR	200kA AC 700V	Details to product 2028221.315
2028221.32	NH000	32A	690 V	aR	200kA AC 700V	Details to product 2028221.32
2028221.40	NH000	40A	690 V	aR	200kA AC 700V	Details to product 2028221.40
2028221.400	NH000	400A	500 V	aR	200kA AC 500V	Details to product 2028221.400
2028221.63	NH000	63A	690 V	aR	200kA AC 700V	Details to product 2028221.63
2028221.80	NH000	80A	690 V	aR	200kA AC 700V	Details to product 2028221.80

Contact us Download PDF

5014506 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	22x58	1A - 150A	500 V	aR	200kA AC 550V	Download PDF

17 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
5014506.1	22x58	1A	690 V	gR	200kA AC 700V	Details to product 5014506.1
5014506.10	22x58	10A	690 V	gR	200kA AC 700V	Details to product 5014506.10
5014506.100	22x58	100A	690 V	aR	200kA AC 700V	Details to product 5014506.100
5014506.12	22x58	12A	690 V	gR	200kA AC 700V	Details to product 5014506.12
5014506.150	22x58	150A	500 V	aR	200kA AC 550V	Details to product 5014506.150
5014506.16	22x58	16A	690 V	gR	200kA AC 700V	Details to product 5014506.16
5014506.2	22x58	2A	690 V	gR	200kA AC 700V	Details to product 5014506.2
5014506.20	22x58	20A	690 V	gR	200kA AC 700V	Details to product 5014506.20
5014506.25	22x58	25A	690 V	gR	200kA AC 700V	Details to product 5014506.25
5014506.32	22x58	32A	690 V	gR	200kA AC 700V	Details to product 5014506.32
5014506.4	22x58	4A	690 V	gR	200kA AC 700V	Details to product 5014506.4
5014506.40	22x58	40A	690 V	gR	200kA AC 700V	Details to product 5014506.40
5014506.50	22x58	50A	690 V	gR	200kA AC 700V	Details to product 5014506.50
5014506.6	22x58	6A	690 V	gR	200kA AC 700V	Details to product 5014506.6
5014506.63	22x58	63A	690 V	gR	200kA AC 700V	Details to product 5014506.63
5014506.8	22x58	8A	690 V	gR	200kA AC 700V	Details to product 5014506.8
5014506.80	22x58	80A	690 V	gR	200kA AC 700V	Details to product 5014506.80

Contact us Download PDF

5014606 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	22x58	150A	500 V	aR	200kA AC 550V	Download PDF

1 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
5014606.150		22x58	150A	500 V	aR	200kA AC 550V	Details to product 5014606.150

Contact us Download PDF

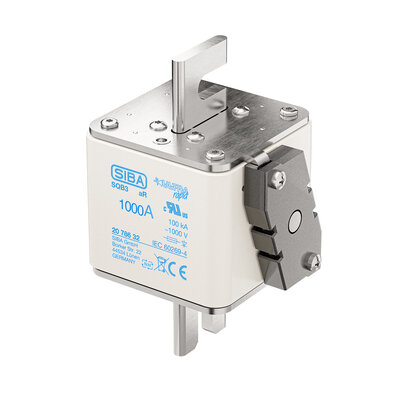

2078632 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
SQB3		550A - 1100A	1000 V	aR	100kA AC 1000V	Download PDF

6 Article(s)

Item number	Size	Rated current	Rated voltage	Characteristic	Rated breaking capacity
2078632.1000	SQB3	1000A	1000 V	aR	100kA AC 1000V	Details to product 2078632.1000
2078632.1100	SQB3	1100A	1000 V	aR	100kA AC 1000V	Details to product 2078632.1100
2078632.630	SQB3	630A	1250 V	aR	100kA AC 1300V / 200kA DC 900V	Details to product 2078632.630
2078632.700	SQB3	700A	1250 V	aR	100kA AC 1300V / 200kA DC 900V	Details to product 2078632.700
2078632.800	SQB3	800A	1250 V	aR	100kA AC 1300V / 200kA DC 900V	Details to product 2078632.800
2078632.900	SQB3	900A	1250 V	aR	100kA AC 1200V	Details to product 2078632.900

Contact us Download PDF

5806315 Contact-Clip

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	10					Download PDF

2 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
5806315.IP		10					Details to product 5806315.IP
5806315.		10					Details to product 5806315.

Contact us Download PDF

3031011 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	63.5x360	6.3A - 100A	12 kV	Back-Up	63 kA	Download PDF

2 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
3031011.100		63.5x360	100A	12 kV	Back-Up	63 kA	Details to product 3031011.100
3031011.80		63.5x360	80A	12 kV	Back-Up	63 kA	Details to product 3031011.80

Contact us Download PDF

2024536 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
SQB-DC153		100A - 500A	DC 1500 V	gBat/gR	260kA DC 1500V	Download PDF

3 Article(s)

Item number	Size	Rated current	Rated voltage	Characteristic	Rated breaking capacity
2024536.350	SQB-DC153	350A	DC 1500 V	gBat/gR	260kA DC 1500V	Details to product 2024536.350
2024536.450	SQB-DC153	450A	DC 1500 V	gBat/gR	260kA DC 1500V	Details to product 2024536.450
2024536.500	SQB-DC153	500A	DC 1500 V	gBat/gR	260kA DC 1500V	Details to product 2024536.500

Contact us Download PDF

9020339 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
SQB-DC2	SM142	125A - 500A	DC 1500 V	aBat/aR	100kA DC 1500V	Download PDF

7 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
9020339.160	SQB-DC2	SM142	160A	DC 1500 V	aBat/aR	260kA DC 1500V	Details to product 9020339.160
9020339.200	SQB-DC2	SM142	200A	DC 1500 V	aBat/aR	260kA DC 1500V	Details to product 9020339.200
9020339.250	SQB-DC2	SM142	250A	DC 1500 V	aBat/aR	260kA DC 1500V	Details to product 9020339.250
9020339.315	SQB-DC2	SM142	315A	DC 1500 V	aBat/aR	260kA DC 1500V	Details to product 9020339.315
9020339.400	SQB-DC2	SM142	400A	DC 1500 V	aBat/aR	260kA DC 1500V	Details to product 9020339.400
9020339.500	SQB-DC2	SM142	500A	DC 1500 V	aBat/aR	100kA DC 1500V	Details to product 9020339.500
9020339.350	SQB-DC2	SM142	350A	DC 1500 V	aBat/aR	260kA DC 1500V	Details to product 9020339.350

Contact us Download PDF

3042026 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
	63.5x254	20A - 100A	5.5 kV	Back-Up	63 kA

3 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
3042026.100	63.5x254	100A	5.5 kV	Back-Up	63 kA	Details to product 3042026.100
3042026.20	63.5x254	20A	5.5 kV	Back-Up	63 kA	Details to product 3042026.20
3042026.50	63.5x254	50A	5.5 kV	Back-Up	63 kA	Details to product 3042026.50

Contact us

160012 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	4.5x12	0.05A - 8A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Download PDF

43 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
160012.0,8	4.5x12	800mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,8
160012.0,8GT	4.5x12	800mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,8GT
160012.1	4.5x12	1A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.1
160012.1,25	4.5x12	80mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.1,25
160012.1,25GT	4.5x12	80mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.1,25GT
160012.1,6	4.5x12	1,6A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.1,6
160012.1,6GT	4.5x12	1,6A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.1,6GT
160012.1GT	4.5x12	1A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.1GT
160012.2	4.5x12	2A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.2
160012.2,5	4.5x12	2,5A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.2,5
160012.2,5GT	4.5x12	2,5A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.2,5GT
160012.2GT	4.5x12	2A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.2GT
160012.3,15	4.5x12	3,15A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.3,15
160012.3,15GT	4.5x12	3,15A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.3,15GT
160012.4	4.5x12	4A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.4
160012.4GT	4.5x12	4A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.4GT
160012.5	4.5x12	5A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.5
160012.5GT	4.5x12	5A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.5GT
160012.6,3	4.5x12	6,3A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.6,3
160012.6,3GT	4.5x12	6,3A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.6,3GT
160012.8	4.5x12	8A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.8
160012.8GT	4.5x12	8A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.8GT
160012.0,05	4.5x12	50mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,05
160012.0,05GT	4.5x12	50mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,05GT
160012.0,08	4.5x12	80mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,08
160012.0,1	4.5x12	0,1A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,1
160012.0,125	4.5x12	125mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,125
160012.0,125GT	4.5x12	125mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,125GT
160012.0,16	4.5x12	160mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,16
160012.0,16GT	4.5x12	160mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,16GT
160012.0,1GT	4.5x12	0,1A	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,1GT
160012.0,2	4.5x12	200mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,2
160012.0,25	4.5x12	250mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,25
160012.0,25GT	4.5x12	250mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,25GT
160012.0,2GT	4.5x12	200mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,2GT
160012.0,315	4.5x12	315mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,315
160012.0,315GT	4.5x12	315mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,315GT
160012.0,4	4.5x12	400mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,4
160012.0,4GT	4.5x12	400mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,4GT
160012.0,5	4.5x12	500mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,5
160012.0,5GT	4.5x12	500mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,5GT
160012.0,63	4.5x12	630mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,63
160012.0,63GT	4.5x12	630mA	AC 277 V / DC 250 V	T	500A AC 277 V / DC 250 V	Details to product 160012.0,63GT

Contact us Download PDF
