We found 11 main article with a total of 117 sub-articles for your search.

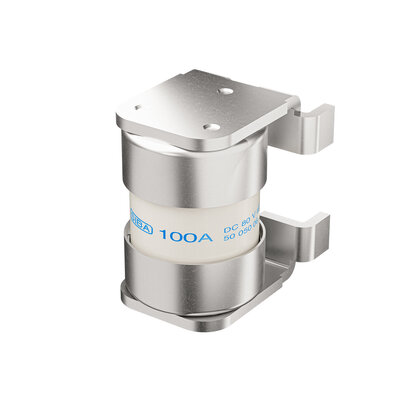

5005006

5005006 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	17.5x25.5	63A - 100A	DC 80 V	aR	100kA DC 150V	Download PDF

4 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
5005006.80		17.5x25.5	80A	DC 80 V	aR	100kA DC 150V	Details to product 5005006.80
5005006.63		17.5x25.5	63A	DC 80 V	aR	100kA DC 150V	Details to product 5005006.63
5005006.75		17.5x25.5	75A	DC 80 V	aR	100kA DC 150V	Details to product 5005006.75
5005006.100		17.5x25.5	100A	DC 80 V	aR	100kA DC 150V	Details to product 5005006.100

Contact us Download PDF

5015536

5015536 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	22x58	12A - 160A	DC 250 V	gBat/gR	100kA DC 250V	Download PDF

12 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
5015536.100		22x58	100A	DC 250 V	gBat/gR	100kA DC 250V	Details to product 5015536.100
5015536.12		22x58	12A	DC 250 V	gBat/gR	100kA DC 250V	Details to product 5015536.12
5015536.16		22x58	16A	DC 250 V	gBat/gR	100kA DC 250V	Details to product 5015536.16
5015536.20		22x58	20A	DC 250 V	gBat/gR	100kA DC 250V	Details to product 5015536.20
5015536.25		22x58	25A	DC 250 V	gBat/gR	100kA DC 250V	Details to product 5015536.25
5015536.32		22x58	32A	DC 250 V	gBat/gR	100kA DC 250V	Details to product 5015536.32
5015536.40		22x58	40A	DC 250 V	gBat/gR	100kA DC 250V	Details to product 5015536.40
5015536.50		22x58	50A	DC 250 V	gBat/gR	100kA DC 250V	Details to product 5015536.50
5015536.80		22x58	80A	DC 250 V	gBat/gR	100kA DC 250V	Details to product 5015536.80
5015536.125		22x58	125A	DC 250 V	gBat/gR	100kA DC 250V	Details to product 5015536.125
5015536.160		22x58	160A	DC 250 V	gBat/gR	100kA DC 250V	Details to product 5015536.160
5015536.63		22x58	63A	DC 250 V	gBat/gR	100kA DC 250V	Details to product 5015536.63

Contact us Download PDF

5004838

5004838 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	17.5x41.8	12A - 180A	DC 250 V	aBat/aR	100kA DC 250V	Download PDF

10 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
5004838.125		17.5x41.8	125A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5004838.125
5004838.100		17.5x41.8	100A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5004838.100
5004838.80		17.5x41.8	80A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5004838.80
5004838.180		17.5x41.8	180A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5004838.180
5004838.25		17.5x41.8	25A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5004838.25
5004838.32		17.5x41.8	32A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5004838.32
5004838.50		17.5x41.8	50A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5004838.50
5004838.160		17.5x41.8	160A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5004838.160
5004838.63		17.5x41.8	63A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5004838.63
5004838.12		17.5x41.8	12A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5004838.12

Contact us Download PDF

5007138

5007138 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
	2x35x59	300A - 900A	DC 150 V	aBat/aR	40kA DC 150V

9 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
5007138.300		2x35x59	300A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5007138.300
5007138.350		2x35x59	350A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5007138.350
5007138.400		2x35x59	400A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5007138.400
5007138.450		2x35x59	450A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5007138.450
5007138.800		2x35x59	800A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5007138.800
5007138.900		2x35x59	900A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5007138.900
5007138.500		2x35x59	500A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5007138.500
5007138.710		2x35x59	710A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5007138.710
5007138.630		2x35x59	630A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5007138.630

5005038

5005038 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	17.5x25.5	12A - 180A	DC 250 V	aBat/aR	100kA DC 250V	Download PDF

10 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
5005038.12		17.5x25.5	12A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5005038.12
5005038.125		17.5x25.5	125A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5005038.125
5005038.160		17.5x25.5	160A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5005038.160
5005038.25		17.5x25.5	25A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5005038.25
5005038.32		17.5x25.5	32A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5005038.32
5005038.50		17.5x25.5	50A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5005038.50
5005038.63		17.5x25.5	63A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5005038.63
5005038.80		17.5x25.5	80A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5005038.80
5005038.100		17.5x25.5	100A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5005038.100
5005038.180		17.5x25.5	180A	DC 250 V	aBat/aR	100kA DC 250V	Details to product 5005038.180

Contact us Download PDF

5005438

5005438 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	35x59	100A - 450A	DC 150 V	aBat/aR	40kA DC 150V	Download PDF

13 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
5005438.125		35x59	125A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5005438.125
5005438.160		35x59	160A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5005438.160
5005438.180		35x59	180A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5005438.180
5005438.200		35x59	200A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5005438.200
5005438.225		35x59	225A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5005438.225
5005438.300		35x59	300A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5005438.300
5005438.100		35x59	100A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5005438.100
5005438.150		35x59	150A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5005438.150
5005438.250		35x59	250A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5005438.250
5005438.355		35x59	355A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5005438.355
5005438.450		35x59	450A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5005438.450
5005438.400		35x59	400A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5005438.400
5005438.315		35x59	315A	DC 150 V	aBat/aR	40kA DC 150V	Details to product 5005438.315

Contact us Download PDF

5007838

5007838 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	35x59	35A - 600A	DC 150 V	aR	25kA DC 150V	Download PDF

16 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
5007838.50		35x59	50A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.50
5007838.80		35x59	80A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.80
5007838.600		35x59	600A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.600
5007838.355		35x59	355A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.355
5007838.250		35x59	250A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.250
5007838.63		35x59	63A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.63
5007838.35		35x59	35A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.35
5007838.315		35x59	315A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.315
5007838.400		35x59	400A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.400
5007838.450		35x59	450A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.450
5007838.500		35x59	500A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.500
5007838.160		35x59	160A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.160
5007838.200		35x59	200A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.200
5007838.100		35x59	100A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.100
5007838.125		35x59	125A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.125
5007838.40		35x59	40A	DC 150 V	aR	25kA DC 150V	Details to product 5007838.40

Contact us Download PDF

5008038 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
	2x35x59	70A - 1200A	DC 150 V	aR	25kA DC 150V

16 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
5008038.100		2x35x59	100A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.100
5008038.1000		2x35x59	1000A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.1000
5008038.1200		2x35x59	1200A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.1200
5008038.125		2x35x59	125A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.125
5008038.160		2x35x59	160A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.160
5008038.200		2x35x59	200A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.200
5008038.250		2x35x59	250A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.250
5008038.320		2x35x59	320A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.320
5008038.400		2x35x59	400A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.400
5008038.500		2x35x59	500A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.500
5008038.70		2x35x59	70A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.70
5008038.710		2x35x59	710A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.710
5008038.80		2x35x59	80A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.80
5008038.800		2x35x59	800A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.800
5008038.900		2x35x59	900A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.900
5008038.630		2x35x59	630A	DC 150 V	aR	25kA DC 150V	Details to product 5008038.630

5016036 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
	22x58	25A - 100A	DC 500 V	gBat/gR	100kA DC 500 V

9 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
5016036.25		22x58	25A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016036.25
5016036.30		22x58	30A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016036.30
5016036.32		22x58	32A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016036.32
5016036.35		22x58	35A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016036.35
5016036.40		22x58	40A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016036.40
5016036.50		22x58	50A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016036.50
5016036.63		22x58	63A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016036.63
5016036.80		22x58	80A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016036.80
5016036.100		22x58	100A	DC 500 V	gBat/gR	100kA DC 500V	Details to product 5016036.100

5016136 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
	22x58	25A - 100A	DC 500 V	gBat/gR	100kA DC 500 V

9 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
5016136.25		22x58	25A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016136.25
5016136.30		22x58	30A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016136.30
5016136.32		22x58	32A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016136.32
5016136.35		22x58	35A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016136.35
5016136.40		22x58	40A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016136.40
5016136.50		22x58	50A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016136.50
5016136.63		22x58	63A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016136.63
5016136.80		22x58	80A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016136.80
5016136.100		22x58	100A	DC 500 V	gBat/gR	100kA DC 500V	Details to product 5016136.100

5016236

5016236 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
	22x58	25A - 100A	DC 500 V	gBat/gR	100kA DC 500 V

9 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
5016236.25		22x58	25A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016236.25
5016236.30		22x58	30A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016236.30
5016236.32		22x58	32A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016236.32
5016236.35		22x58	35A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016236.35
5016236.40		22x58	40A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016236.40
5016236.50		22x58	50A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016236.50
5016236.63		22x58	63A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016236.63
5016236.80		22x58	80A	DC 500 V	gBat/gR	100kA DC 500 V	Details to product 5016236.80
5016236.100		22x58	100A	DC 500 V	gBat/gR	100kA DC 500V	Details to product 5016236.100
