Fuse Detector

3000211 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	e=192	0.5A - 40A	3/7.2 kV	Back-Up	80kA	Download PDF

6 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
3000211.0,5	e=192	500mA	3/7.2 kV	Back-Up	80kA	Details to product 3000211.0,5
3000211.1	e=192	1A	3/7.2 kV	Back-Up	80kA	Details to product 3000211.1
3000211.2	e=192	2A	3/7.2 kV	Back-Up	80kA	Details to product 3000211.2
3000211.3,15	e=192	3,15A	3/7.2 kV	Back-Up	80kA	Details to product 3000211.3,15
3000211.5	e=192	5A	3/7.2 kV	Back-Up	80kA	Details to product 3000211.5
3000211.2,5	e=192	2,5A	3/7.2 kV	Back-Up	80kA	Details to product 3000211.2,5

Contact us Download PDF

3000213 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	e=192	2A - 50A	3/7.2 kV	Back-Up	80kA	Download PDF

13 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
3000213.10	e=192	10A	3/7.2 kV	Back-Up	80kA	Details to product 3000213.10
3000213.16	e=192	16A	3/7.2 kV	Back-Up	80kA	Details to product 3000213.16
3000213.2	e=192	2A	3/7.2 kV	Back-Up	80kA	Details to product 3000213.2
3000213.2,5	e=192	2,5A	3/7.2 kV	Back-Up	80kA	Details to product 3000213.2,5
3000213.20	e=192	20A	3/7.2 kV	Back-Up	80kA	Details to product 3000213.20
3000213.25	e=192	25A	3/7.2 kV	Back-Up	80kA	Details to product 3000213.25
3000213.3,15	e=192	3,15A	3/7.2 kV	Back-Up	80kA	Details to product 3000213.3,15
3000213.31,5	e=192	31,5A	3/7.2 kV	Back-Up	80kA	Details to product 3000213.31,5
3000213.4	e=192	4A	3/7.2 kV	Back-Up	80kA	Details to product 3000213.4
3000213.40	e=192	40A	3/7.2 kV	Back-Up	80kA	Details to product 3000213.40
3000213.5	e=192	5A	3/7.2 kV	Back-Up	80kA	Details to product 3000213.5
3000213.50	e=192	50A	3/7.2 kV	Back-Up	80kA	Details to product 3000213.50
3000213.6,3	e=192	6,3A	3/7.2 kV	Back-Up	80kA	Details to product 3000213.6,3

Contact us Download PDF

3000313 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	e=292	6.3A - 31.5A	6/12 kV	Back-Up	63 kA	Download PDF

3 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
3000313.25	e=292	25A	6/12 kV	Back-Up	63 kA	Details to product 3000313.25
3000313.31,5	e=292	31,5A	6/12 kV	Back-Up	63 kA	Details to product 3000313.31,5
3000313.6,3	e=292	6,3A	6/12 kV	Back-Up	63 kA	Details to product 3000313.6,3

Contact us Download PDF

3000403 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	e=292	6.3A - 40A	6/12 kV	Full-Range	80 kA	Download PDF

7 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
3000403.10	e=292	10A	6/12 kV	Full-Range	80 kA	Details to product 3000403.10
3000403.16	e=292	16A	6/12 kV	Full-Range	80 kA	Details to product 3000403.16
3000403.20	e=292	20A	6/12 kV	Full-Range	80 kA	Details to product 3000403.20
3000403.25	e=292	25A	6/12 kV	Full-Range	80 kA	Details to product 3000403.25
3000403.31,5	e=292	31,5A	6/12 kV	Full-Range	80 kA	Details to product 3000403.31,5
3000403.40	e=292	40A	6/12 kV	Full-Range	80 kA	Details to product 3000403.40
3000403.6,3	e=292	6,3A	6/12 kV	Full-Range	80 kA	Details to product 3000403.6,3

Contact us Download PDF

3000411 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	e=292	0.5A - 4A	6/12 kV	Back-Up	63 kA	Download PDF

5 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
3000411.0,5	e=292	500mA	6/12 kV	Back-Up	63 kA	Details to product 3000411.0,5
3000411.1	e=292	1A	6/12 kV	Back-Up	63 kA	Details to product 3000411.1
3000411.2	e=292	2A	6/12 kV	Back-Up	63 kA	Details to product 3000411.2
3000411.2,5	e=292	2,5A	6/12 kV	Back-Up	63 kA	Details to product 3000411.2,5
3000411.4	e=292	4A	6/12 kV	Back-Up	63 kA	Details to product 3000411.4

Contact us Download PDF

3000413 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	e=292	2A - 63A	6/12 kV	Back-Up	63 kA	Download PDF

24 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
3000413.10	e=292	10A	6/12 kV	Back-Up	63 kA	Details to product 3000413.10
3000413.10D	e=292	10A	6/12 kV	Back-Up	63 kA	Details to product 3000413.10D
3000413.16	e=292	16A	6/12 kV	Back-Up	63 kA	Details to product 3000413.16
3000413.16D	e=292	16A	6/12 kV	Back-Up	63 kA	Details to product 3000413.16D
3000413.2	e=292	2A	6/12 kV	Back-Up	63 kA	Details to product 3000413.2
3000413.2,5	e=292	2,5A	6/12 kV	Back-Up	63 kA	Details to product 3000413.2,5
3000413.20	e=292	20A	6/12 kV	Back-Up	63 kA	Details to product 3000413.20
3000413.20D	e=292	20A	6/12 kV	Back-Up	63 kA	Details to product 3000413.20D
3000413.25	e=292	25A	6/12 kV	Back-Up	63 kA	Details to product 3000413.25
3000413.25D	e=292	25A	6/12 kV	Back-Up	63 kA	Details to product 3000413.25D
3000413.2D	e=292	2A	6/12 kV	Back-Up	63 kA	Details to product 3000413.2D
3000413.3,15	e=292	3,15A	6/12 kV	Back-Up	63 kA	Details to product 3000413.3,15
3000413.31,5	e=292	31,5A	6/12 kV	Back-Up	63 kA	Details to product 3000413.31,5
3000413.31,5D	e=292	31,5A	6/12 kV	Back-Up	63 kA	Details to product 3000413.31,5D
3000413.4	e=292	4A	6/12 kV	Back-Up	63 kA	Details to product 3000413.4
3000413.40	e=292	40A	6/12 kV	Back-Up	63 kA	Details to product 3000413.40
3000413.40D	e=292	40A	6/12 kV	Back-Up	63 kA	Details to product 3000413.40D
3000413.4D	e=292	4A	6/12 kV	Back-Up	63 kA	Details to product 3000413.4D
3000413.5	e=292	5A	6/12 kV	Back-Up	63 kA	Details to product 3000413.5
3000413.50	e=292	50A	6/12 kV	Back-Up	63 kA	Details to product 3000413.50
3000413.50D	e=292	50A	6/12 kV	Back-Up	63 kA	Details to product 3000413.50D
3000413.6,3	e=292	6,3A	6/12 kV	Back-Up	63 kA	Details to product 3000413.6,3
3000413.6,3D	e=292	6,3A	6/12 kV	Back-Up	63 kA	Details to product 3000413.6,3D
3000413.63	e=292	63A	6/12 kV	Back-Up	63 kA	Details to product 3000413.63

Contact us Download PDF

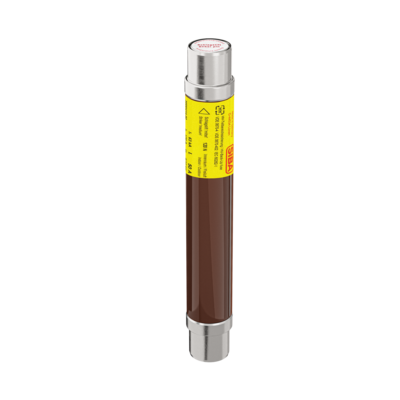

3000414 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	e=292	6.3A - 50A	6/12 kV	Back-Up	63 kA	Download PDF

8 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
3000414.10	e=292	10A	6/12 kV	Back-Up	63 kA	Details to product 3000414.10
3000414.16	e=292	16A	6/12 kV	Back-Up	63 kA	Details to product 3000414.16
3000414.20	e=292	20A	6/12 kV	Back-Up	63 kA	Details to product 3000414.20
3000414.25	e=292	25A	6/12 kV	Back-Up	63 kA	Details to product 3000414.25
3000414.31,5	e=292	31,5A	6/12 kV	Back-Up	63 kA	Details to product 3000414.31,5
3000414.40	e=292	40A	6/12 kV	Back-Up	63 kA	Details to product 3000414.40
3000414.50	e=292	50A	6/12 kV	Back-Up	63 kA	Details to product 3000414.50
3000414.6,3	e=292	6,3A	6/12 kV	Back-Up	63 kA	Details to product 3000414.6,3

Contact us Download PDF

3000493 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	e=292	6.3A	6/12 kV	General-Purpose	63 kA	Download PDF

1 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
3000493.6,3		e=292	6,3A	6/12 kV	General-Purpose	63 kA	Details to product 3000493.6,3

Contact us Download PDF

3000603 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	e=442	6.3A - 31.5A	10/24 kV	Full-Range	63 kA	Download PDF

6 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
3000603.10	e=442	10A	10/24 kV	Full-Range	63 kA	Details to product 3000603.10
3000603.16	e=442	16A	10/24 kV	Full-Range	63 kA	Details to product 3000603.16
3000603.20	e=442	20A	10/24 kV	Full-Range	63 kA	Details to product 3000603.20
3000603.25	e=442	25A	10/24 kV	Full-Range	63 kA	Details to product 3000603.25
3000603.31,5	e=442	31,5A	10/24 kV	Full-Range	63 kA	Details to product 3000603.31,5
3000603.6,3	e=442	6,3A	10/24 kV	Full-Range	63 kA	Details to product 3000603.6,3

Contact us Download PDF

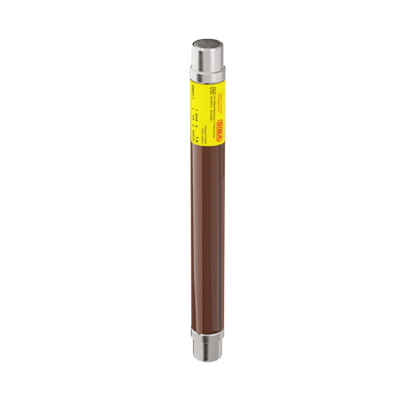

3000611 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	e=442	0.5A - 2.5A	10/24 kV	Back-Up	63 kA	Download PDF

5 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
3000611.0,5	e=442	500mA	10/24 kV	Back-Up	63 kA	Details to product 3000611.0,5
3000611.0,8	e=442	800mA	10/24 kV	Back-Up	63 kA	Details to product 3000611.0,8
3000611.1	e=442	1A	10/24 kV	Back-Up	63 kA	Details to product 3000611.1
3000611.2	e=442	2A	10/24 kV	Back-Up	63 kA	Details to product 3000611.2
3000611.2,5	e=442	2,5A	10/24 kV	Back-Up	63 kA	Details to product 3000611.2,5

Contact us Download PDF

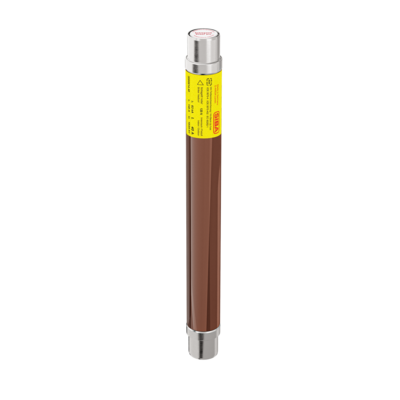

3000614 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	e=442	2A - 40A	10/24 kV	Back-Up	63 kA	Download PDF

7 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
3000614.10	e=442	10A	10/24 kV	Back-Up	63 kA	Details to product 3000614.10
3000614.16	e=442	16A	10/24 kV	Back-Up	63 kA	Details to product 3000614.16
3000614.20	e=442	20A	10/24 kV	Back-Up	63 kA	Details to product 3000614.20
3000614.25	e=442	25A	10/24 kV	Back-Up	63 kA	Details to product 3000614.25
3000614.31,5	e=442	31,5A	10/24 kV	Back-Up	63 kA	Details to product 3000614.31,5
3000614.40	e=442	40A	10/24 kV	Back-Up	63 kA	Details to product 3000614.40
3000614.6,3	e=442	6,3A	10/24 kV	Back-Up	63 kA	Details to product 3000614.6,3

Contact us Download PDF

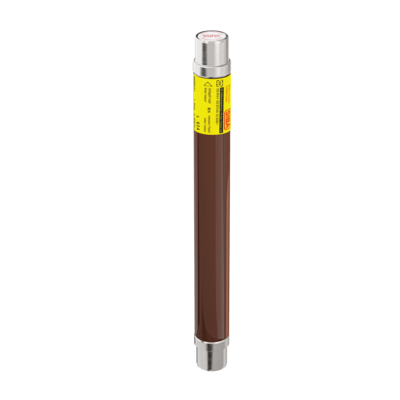

3000693 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	e=442	6.3A	10/24 kV	General-Purpose	40 kA	Download PDF

1 Article(s)

Item number	Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
3000693.6,3		e=442	6,3A	10/24 kV	General-Purpose	40 kA	Details to product 3000693.6,3

Contact us Download PDF
