Fuse Detector

Find products

Enter article number or search values or keywords

Filter by:

Voltage type:

AC/DC

AC

DC

Rated current from ... to

A

Rated voltage from ... to

V

Rated breaking capacity from ... to

kA

Product group

Product subgroup

Characteristic

Size

Dimensions

Application

Approvals

Segment

We found 1 main article with a total of 11 sub-articles for your search.

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	36x190	2A - 100A	DC 1500 V	gR	30kA DC 1500V	Download PDF

11 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity

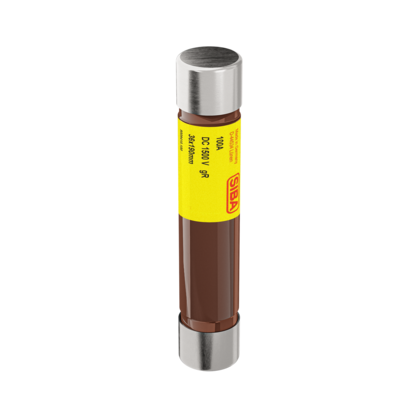

9009410.100	36x190	100A	DC 1500 V	gR	30kA DC 1500V	Details to product 9009410.100
9009410.12	36x190	12A	DC 1500 V	gR	30kA DC 1500V	Details to product 9009410.12
9009410.2	36x190	2A	DC 1500 V	gR	30kA DC 1500V	Details to product 9009410.2
9009410.20	36x190	20A	DC 1500 V	gR	30kA DC 1500V	Details to product 9009410.20
9009410.25	36x190	25A	DC 1500 V	gR	30kA DC 1500V	Details to product 9009410.25
9009410.32	36x190	32A	DC 1500 V	gR	30kA DC 1500V	Details to product 9009410.32
9009410.40	36x190	40A	DC 1500 V	gR	30kA DC 1500V	Details to product 9009410.40
9009410.63	36x190	63A	DC 1500 V	gR	30kA DC 1500V	Details to product 9009410.63
9009410.8	36x190	8A	DC 1500 V	gR	30kA DC 1500V	Details to product 9009410.8
9009410.80	36x190	80A	DC 1500 V	gR	30kA DC 1500V	Details to product 9009410.80
9009410.50	36x190	50A	DC 1500 V	gR	30kA DC 1500V	Details to product 9009410.50
